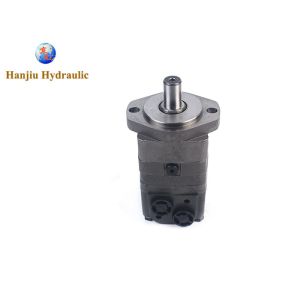

    BMSY125 Hydraulic Orbital Motor with 125cc Displacement 1 Year Warranty and G1/2 Manifold Mount

    Ask Lasest Price
    Brand Name : HANJIU CHINA
    Model Number : BMSY-125-E2-B-D
    Certification : CE
    Price : Contact the seller to ask
    Payment Terms : L/C,D/A,T/T,Western Union,Payple
    Supply Ability : 100000 pieces per year
    Delivery Time : 25 - 35 work days
    • Product Details
    • Company Profile

    BMSY125 Hydraulic Orbital Motor with 125cc Displacement 1 Year Warranty and G1/2 Manifold Mount


    Hydraulic Orbital Motor MS125,BMSY125, 2 bolts flange, Straight shaft for precision-macerator


    Product details:

    type code BMSY-125-E2-B-D


    Displacement:125cc


    Flange:

    2-Ø13.5 Rhomb-flange Ø106.4,
    pilot Ø82.5×6.3


    Shaft:

    Shaft Ø 32 , parllel key 10×8×45

    Ports:

    G1/2 Manifold Mount
    G1/4



    BMSY Main Specifications:


    TypeBMSY
    80
    BMSY
    100
    BMSY
    125
    BMSY
    160
    BMSY
    200
    BMSY
    250
    BMSY
    315
    BMSY
    375
    Geometric displacement
    (cm3 /rev.)
    80.6100.8125157.2200252314.5370
    Max. speed (rpm)cont.800748600470375300240200
    int.988900720560450360280240
    Max. torque (N·m)cont.190240310316400450560536
    int.240300370430466540658645
    peak260320400472650690740751
    Max. output (kW)cont.15.918.819.515.615.714.114.111.8
    int.20.123.523.221.218.31718.917
    Max. pressure drop (MPa)cont.17.517.517.5151412.51210
    int.2121212116161412
    peak22.522.522.522.522.52018.514
    Max. flow (L/min)cont.6575757575757575
    int.8090909090909090
    Max. inlet pressure (MPa)cont.2525252525252525
    int.3030303030303030
    Weight (kg)9.81010.310.711.111.612.312.6

    * Continuous pressure :Max. value of operating motor continuously.
    * Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
    * Peak pressure:Max. value of operating motor in 0.6 second per minute





    Hanjiu technology produce the BMSY Series, widely used on the ‘standard’ vertical slurry distributor and the horizontal slurry distributor. bring the Macerator new performance, long life.

    we gurantee we offer the good quality goods for Macerators manufacturer,best service, and long warranty. once you meet problems during usage,we will offer the technical support


    Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
