    Char Lynn 6000 Series Hydraulic Geroler Motor 38 Cubic Inch Displacement 4 Bolt SAEC Mounting Flange SAE CC Splined

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMK6
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple
    Supply Ability : 300000 pieces per year
    Delivery Time : 10 - 15 work days
    • Product Details
    • Company Profile

    Char Lynn 6000 Series Hydraulic Geroler Motor 38 Cubic Inch Displacement 4 Bolt SAEC Mounting Flange SAE CC Splined

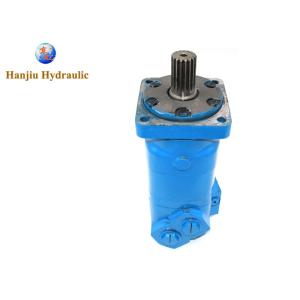

    Char-Lynn 6000 Series Hydraulic Geroler Motor, 38 cubic inch displacement, 4 bolt SAEC mounting flange, SAE CC Splined


    Hanjiu BMK6 = EATON CHAR-LYNN 6000 = EATON CHAR-LYNN 6K = OMT = M+S MT

    Model number: BMK6-630
    Replace Char-lynn motor 6000 Series
    Displacement: 38.0
    Flange: 4x13.5 Square flange
    Pilot: 127x12.5mm
    Mounting distance: 161.9mm
    Shaft: 17-DP12/24
    Port:3/4’’ 8X3/8-16UNC
    Drain port: 7/16-20 UNF
    Paint: Blue


    Features
    • 8 displacements available
    • Presents a multitude of
    options that make this
    motor very “smart” and
    flexible to apply
    Benefits
    • Very tough motor for
    demanding applications
    • Can be used in a
    multitude of industries
    • Very easy/flexible to
    integrate in a system

    Main Specification

    Type

    BMK6

    200

    BMK6

    250

    BMK6

    315

    BMK6

    400

    BMK6

    500

    BMK6

    630

    BMK6

    800

    BMK6

    1000

    Geometric displacement
    (cm3 /rev.)
    195.6246.1311.6391.3490.8623802.4981.6
    Main speed(rpm)

    cont.

    765

    610480382304240186152
    int.865830690570455360280230
    Max torque N.M

    cont.

    56571092011601445148015801675
    int.8401080132516251880189018801860
    Max pressure drop (Mpa)cont.202020202017.51414
    int.3030303027.522.515.514
    Weight (kg)26.326.827.32828.829.630.532




    More Eaton code available


    104-1406
    104-1409
    104-1415
    104-1418
    104-1419
    104-1420
    104-1422
    104-1429
    104-1430
    104-1432
    104-1434
    104-1435
    104-1438
    112-1068
    119-1030
    119-1031
